Changing Screen Group Locations

Changing Screen Group Locations

This article will go over how to change the way and order that screengroups are displayed within a dining area when a tab is being rung in (quicksale screen).


Preliminary -  Menus

- To arrange screengroup locations, first you need to determine what menus are used in each dining area.

1. Navigate to Manager Console setup > revenue source setup > dining areas, select a dining area, then select edit.

2. In the Display tab, look for the box labled Menus, and the menus in blue are selected and in use by the dining area.


Changing Screen Group Locations

1. Now that you know which menus need to be edited - still in the Manager Console - navigate to merchandise > menus and locate the menu used by the dining area.

2. Select the menu then select Edit



3. Select one of these boxes, then select the screengroup link that will go in that position from the link dropdown menu. You can also change the color with the corresponding dropdown menu if needed.

4.Click OK in the edit menu then OK on the edit menu window to save changes.

Idea
This directly reflects the positions of the screengroups on the POS


Extra - Screengroup List Format

- You'll also see that you can change how the screengroups are displayed as a list.

- A Main-Sub Menu will display the top row of boxes and allow those to be selected to access the sub menus which are the screengroups in the column below it. (Example from the picture: Main is main, Apps is first sub)

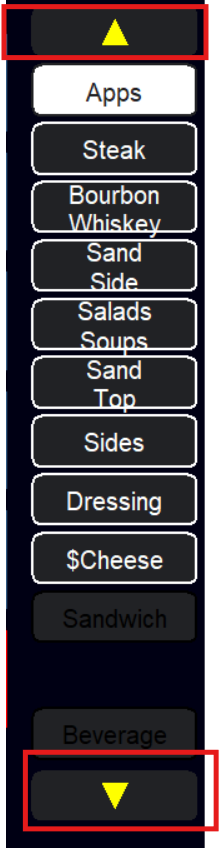

- An Up-Down Menu will display the yellow arrows at the top and bottom to be able to scroll through the list.

Alert
A Scrolling Menu currently does not have any function within onePOS and should be avoided.

Saving Changes

- To ensure the changes save and carry over after you make them on the manager console, log into any terminal with a manager card or number to where the manager menu can be accessed.

- From the manager menu, select Reload Now in the bottom righthand corner one time to initiate a system reload with the new changes.
