Finding the serial number of a chipper in a vault case

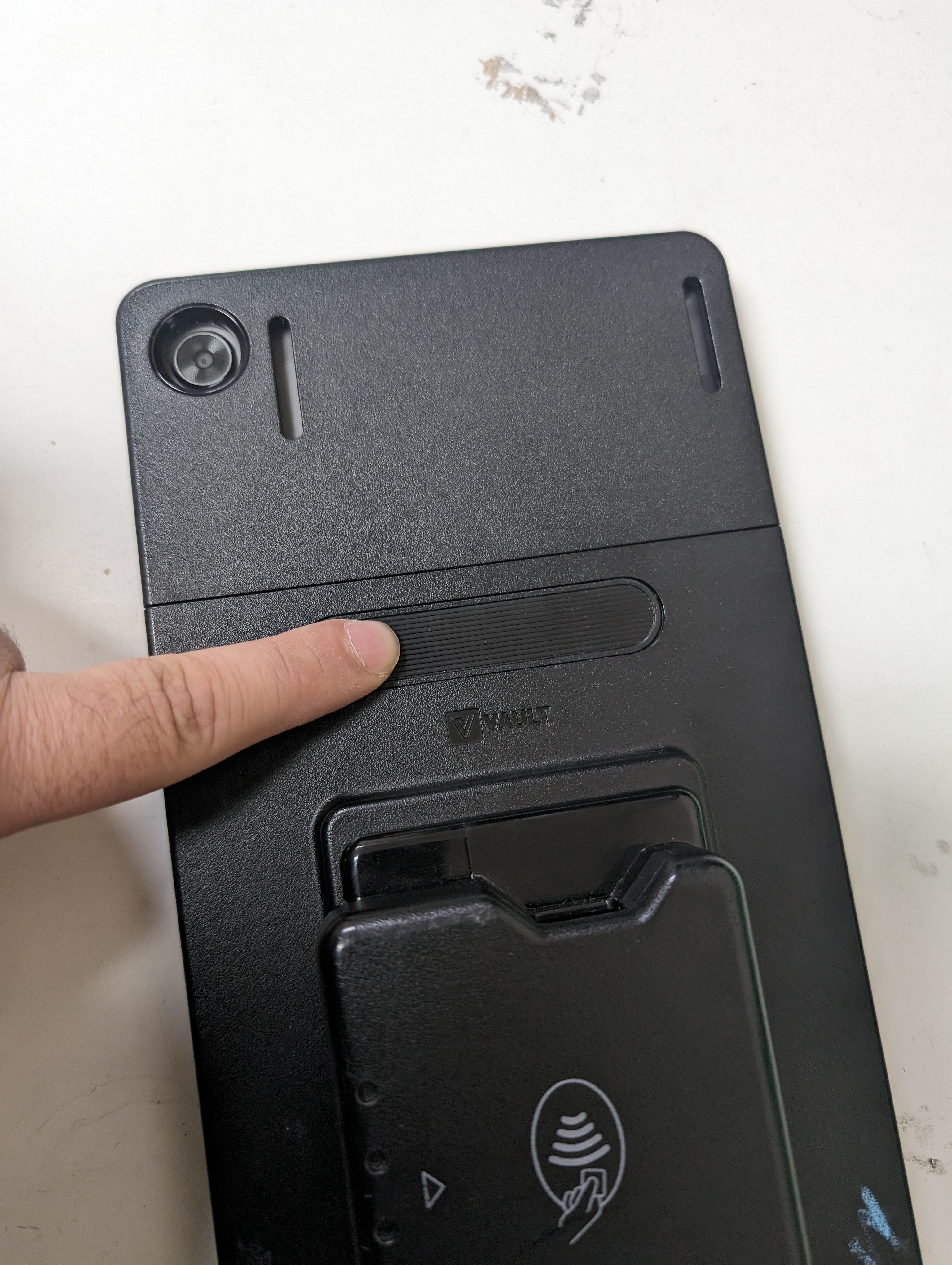

1. Turn the tablet over and find the tab to release the top portion.
2. Press the tab and slide off the top portion.

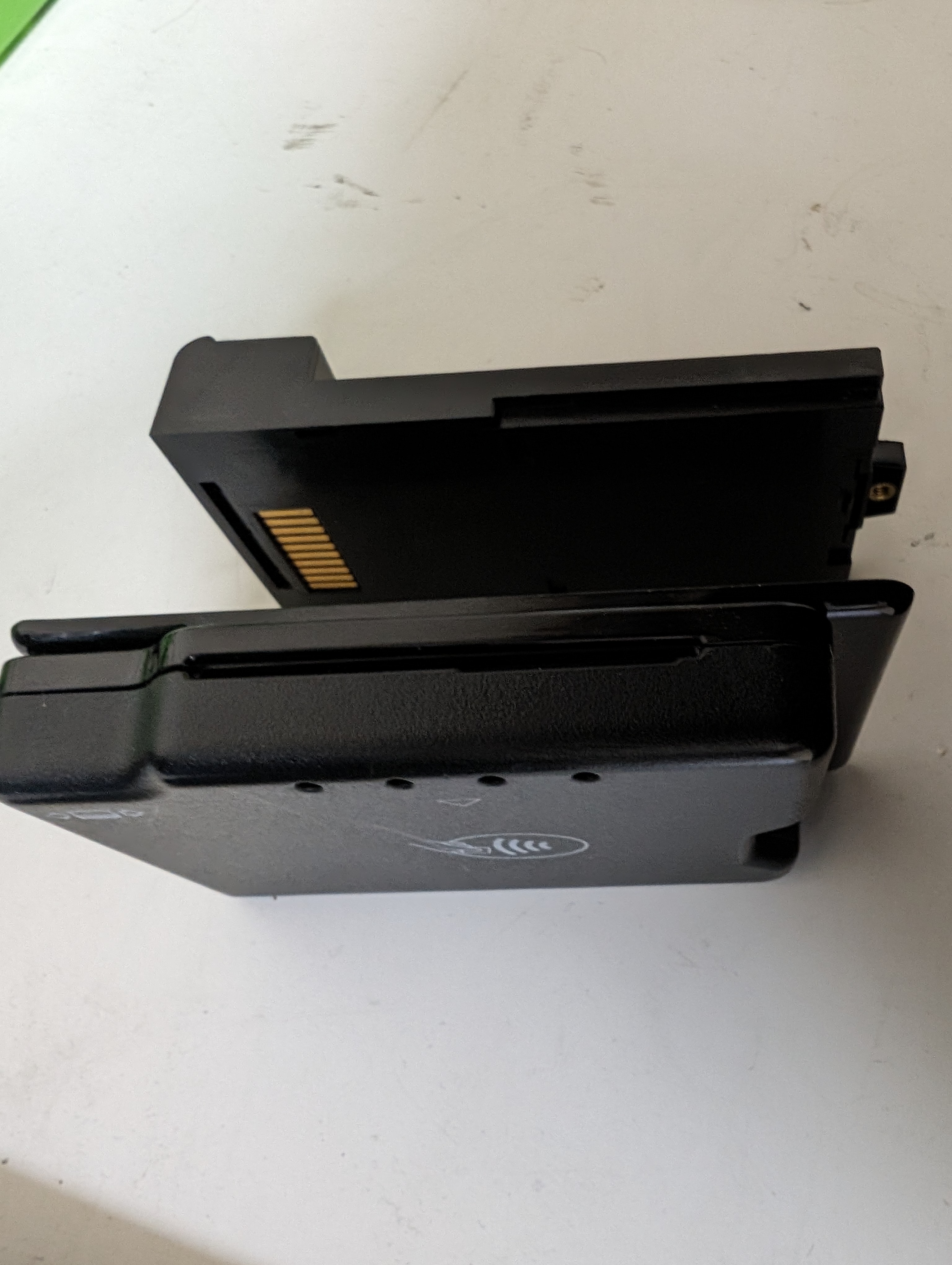

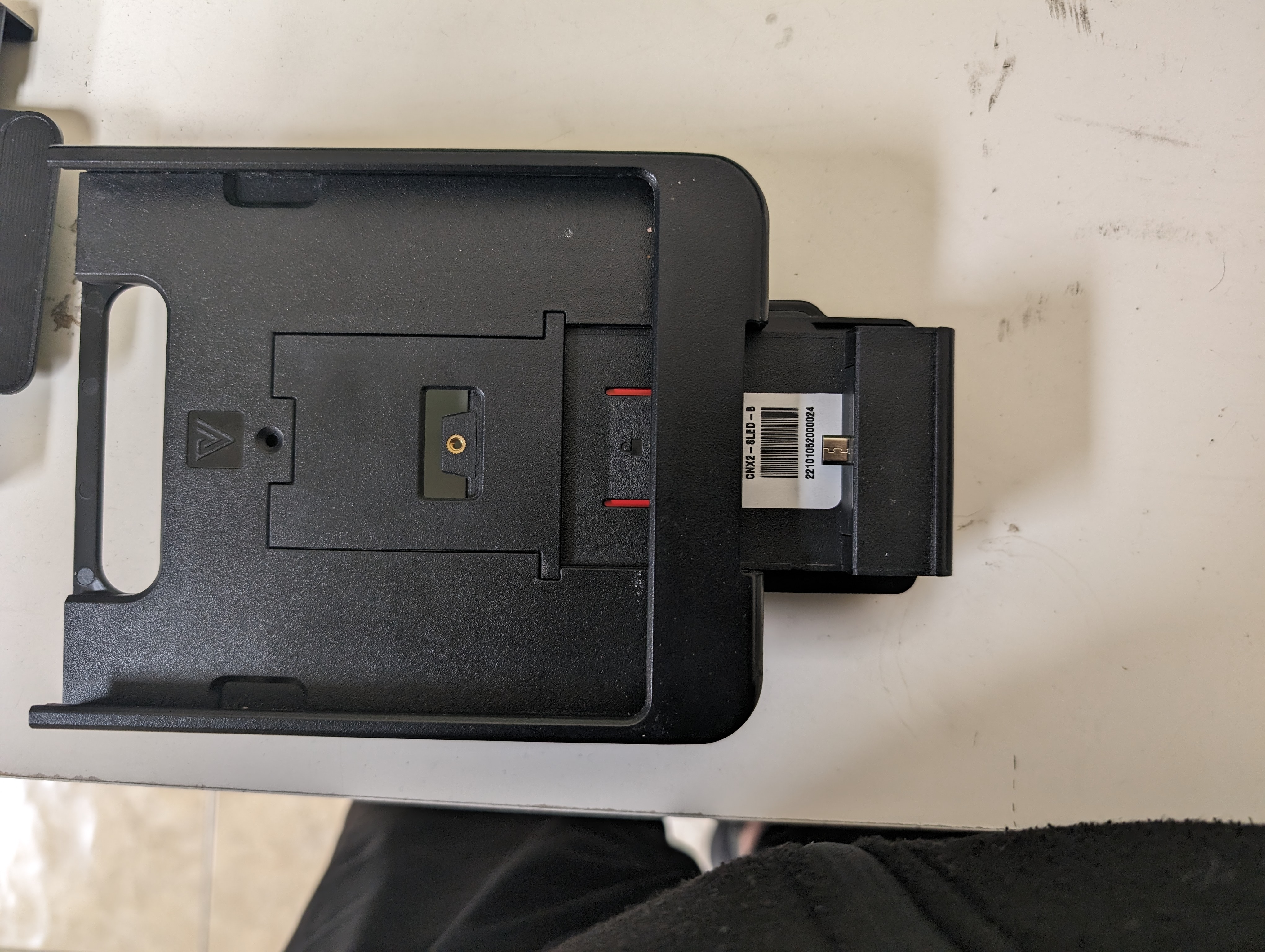

3. Slide the Tablet out and flip the case over. Press tab to slide out chipper housing and battery sled.
4. Pull battery sled and chipper housing apart.

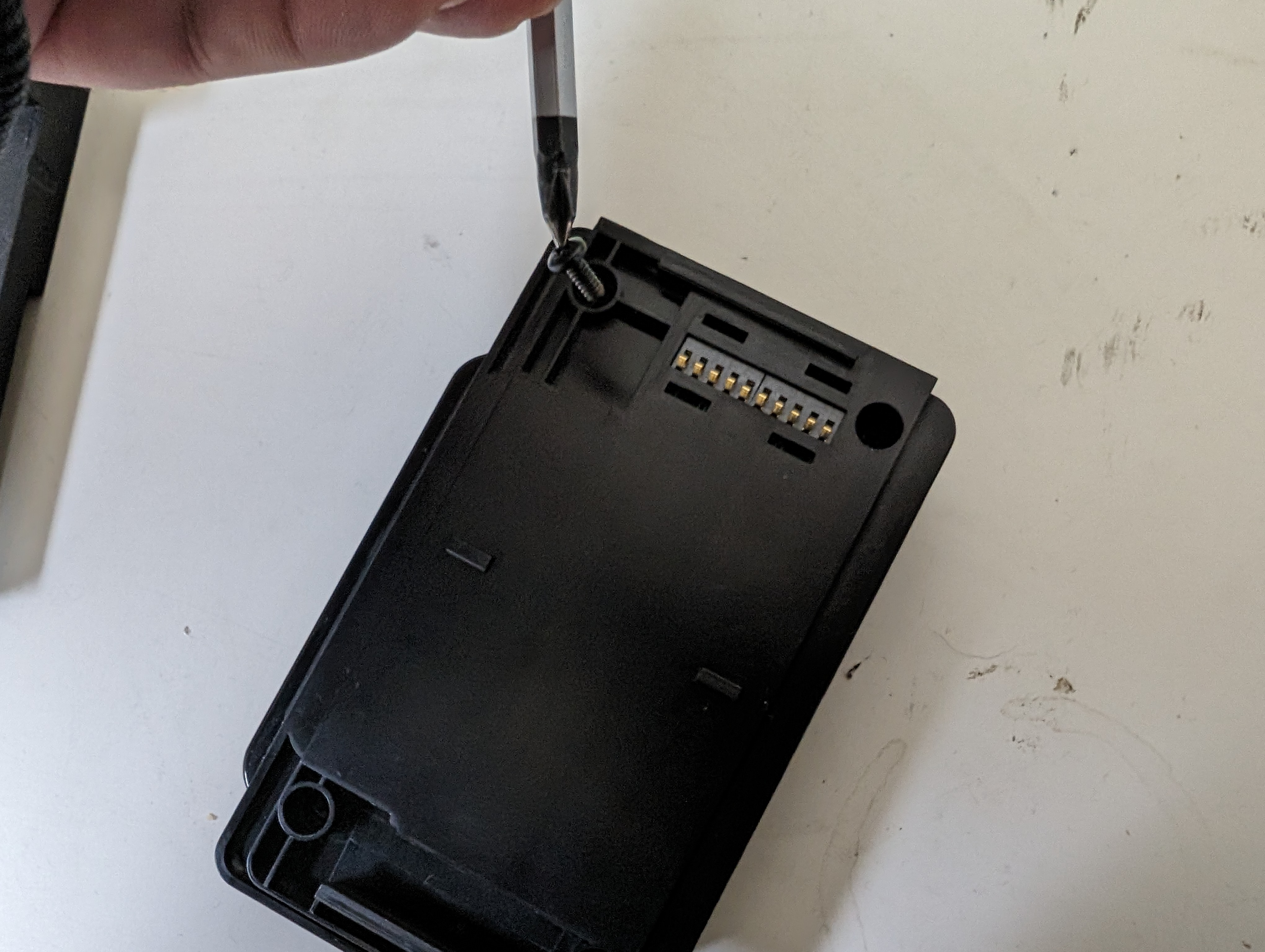

5. Unscrew the 4 screws for the chipper housing.

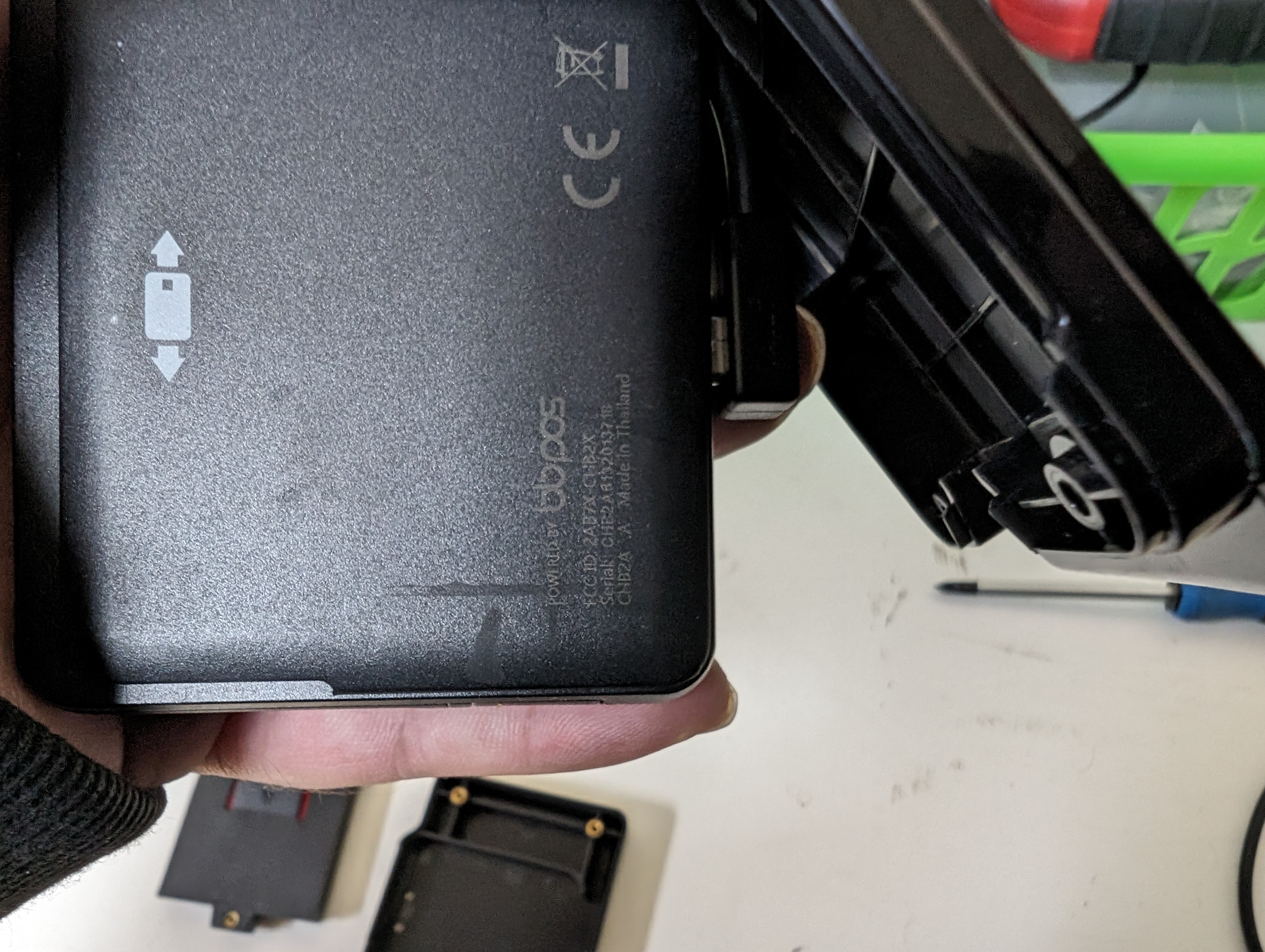

6. Pull chipper to get the sn number off the back of it.
